POWER TROWEL CUM FLOATER

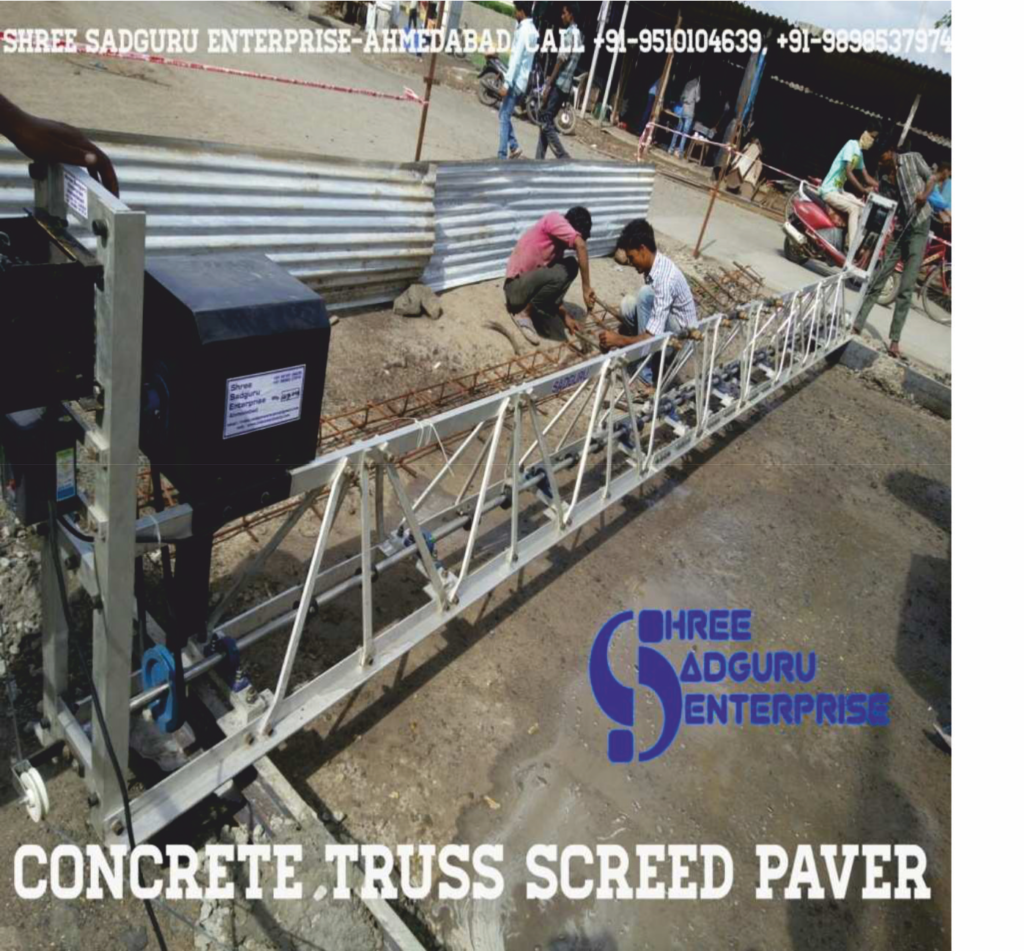

CONCRETE TRUSS SCREED (FIX FORM PAVER)
CONCRETE FIX-FORM TRUSS PAVER-SCREED for
compaction & levelling of concrete & suitable for paving.
Overall length: 3 to 12 meter
Section Length: 3 mtr, 2 mtr, 1.5 mtr & 1 mtr.
Paving width: Min. 2.75 meter & Max. 11.75 meter.
Power Section: 1 pcs.
Driven by 5 HP, 3-Phase High efficiency electric motor.
2 winch systems at both end.
Material of construction: Aluminium & MS.
MEDIUM DUTY DUAL SPEED POWER TROWEL CUM FLOATER
SPECIFICATIONS
2 HP / 3 HP DUAL SPEED ELECTRIC
MOTOR
415 V, 3-PHASE
DIAMETER : 1 Mtr.
DISC DIAMETER : 980 mm
DISC THICKNESS : 3 mm
BLADE THICKNESS : 3 mm
HEAVY DUTY POWER TROWEL CUM FLOATER
SPECIFICATIONS
3 HP / 5 HP ELECTRIC MOTOR
415 V, 3-PHASE
DIAMETER : 1 Mtr.
DISC DIAMETER : 980 mm
DISC THICKNESS : 3 mm
BLADE THICKNESS : 3 mm

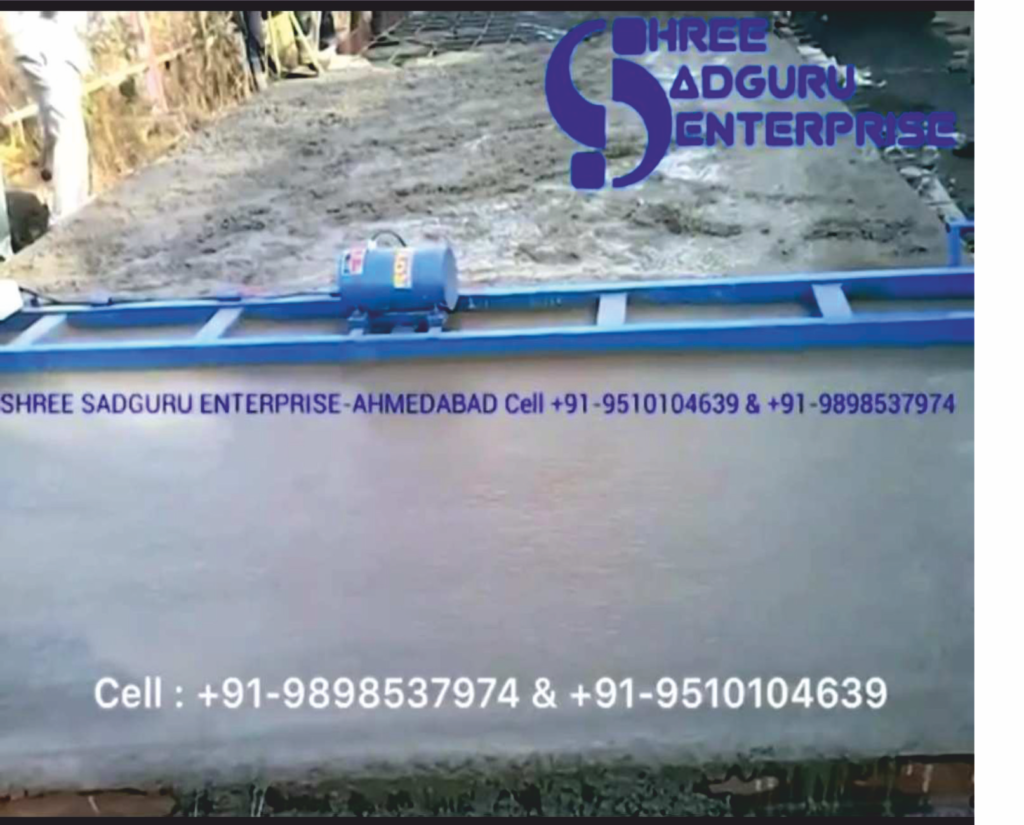

DOUBLE BEAM ELECTRIC SCREED VIBRATOR
SPECIFICATIONS
1 HP ELECTRIC VIBRATOR MOTOR
415 V, 3-PHASE / 230 V, 1-PHASE
BEAM SIZE : 80 x 40 mm
WIDTH : 330 mm
LENGTH : 8 to 16 ft.
